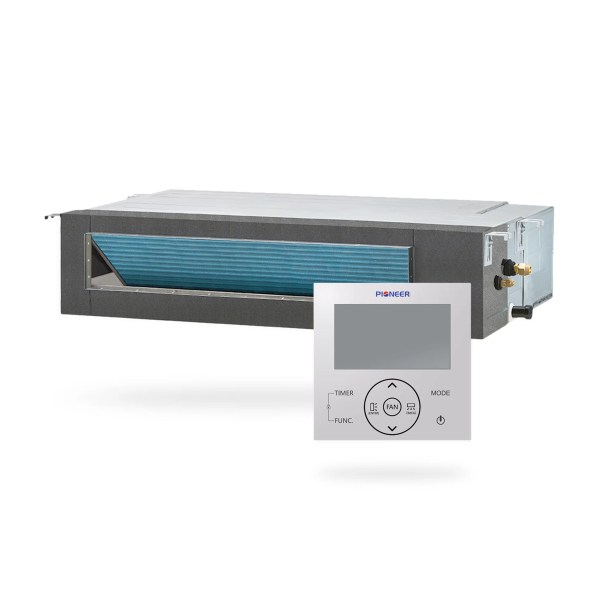

Pioneer® Multi Zone 18,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Suitable Area: 400~650 Sq.F
• Air Flow (Turbo/Hi/Med/Lo/Mute): 500/426/370/300/283 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 48/44/41/36/33 dB(A)
• Product Dimensions (WDH): 35-1/2″ x 19-1/4″ x 7-7/8″ Inches
• Carton Dimensions (WDH): 44-1/8″ x 21-7/8″ x 9-7/8″ Inches
• Net / Gross Weight: 39.7 / 46.3 lbs

Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals & Documents

• Technical Brochure

• Installation and User’s Manual

What’s Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless “No Installation Kit” is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
