Pioneer® Quantum Hyperformance™ 24,000 BTU 22.5 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set
Original price was: $3,249.00.$2,270.00Current price is: $2,270.00.
Why buy from our store?
- Description
- Technical Information & Performance
- Additional information
- Dimension Chart
- Manuals & Documents
- Reviews (0)
Description
Quantum Hyperformance™ High-Wall Series
At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.
IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the “Without Installation Kit” option unless you are providing one yourself.

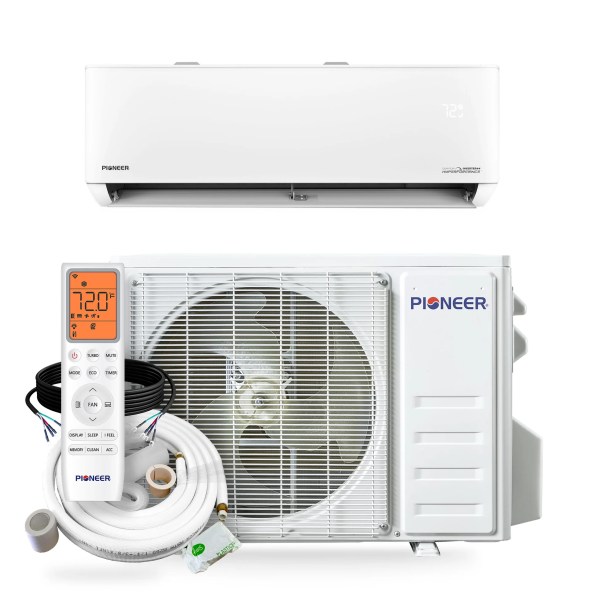

What’s Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries

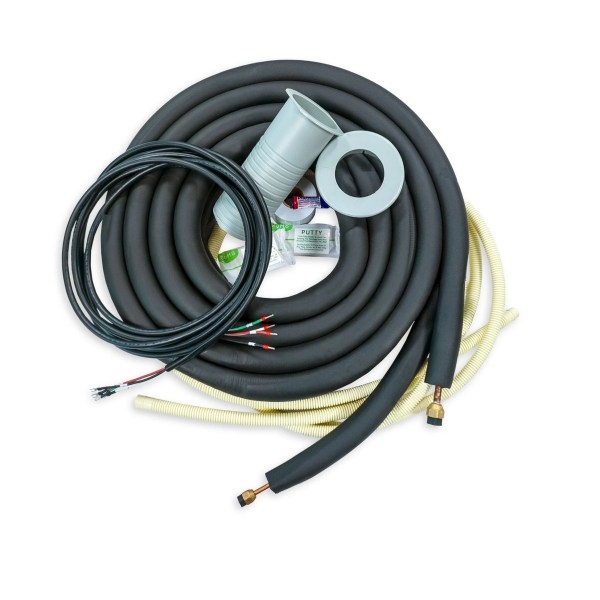

- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check the Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 10 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System

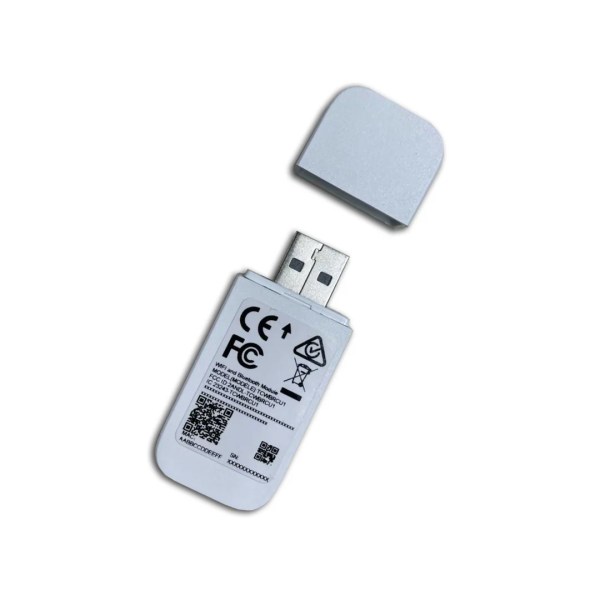

- Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

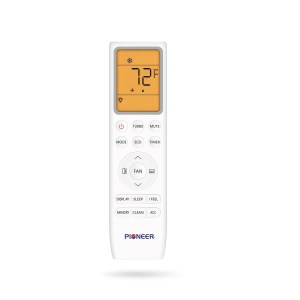

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Our Most Feature-Packed System
The Hyperformance system delivers ultra-quiet comfort, smart control from anywhere, and unbeatable performance in extreme cold.
Heats in -22°F Weather
When winter pushes its hardest, this system pushes back. Engineered to perform in extreme cold, it keeps your home warm and cozy even when outside temperatures plunge.
Free Phone App Control
Stay in command from anywhere with the Pioneer Airlink™ phone app. Adjust settings, schedule comfort, and monitor performance, right from your phone. Compatible with Google/Alexa/Siri.
Pays Back from Day 1
Qualifies for the IRA 30% Federal Tax Credit and other local rebates, while delivering up to 25 SEER ultra high-efficiency performance. That means instant value AND long-term savings.
Silence is the Standard
Advanced engineering delivers library-like quiet operation inside and out, so you can focus on life, not background buzz. With sound levels as low as 26dB, the only thing you’ll notice is comfort.
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,100~19,400 BTU/h
- Cooling SEER2: 23.5 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,100~21,400 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 8.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.64 / 1.8 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
- Minimum Room Size: 52 sq ft
- Piping Diameter:1/2″ (Gas) / 1/4″ (Liquid)
- AHRI Reference: 217048756

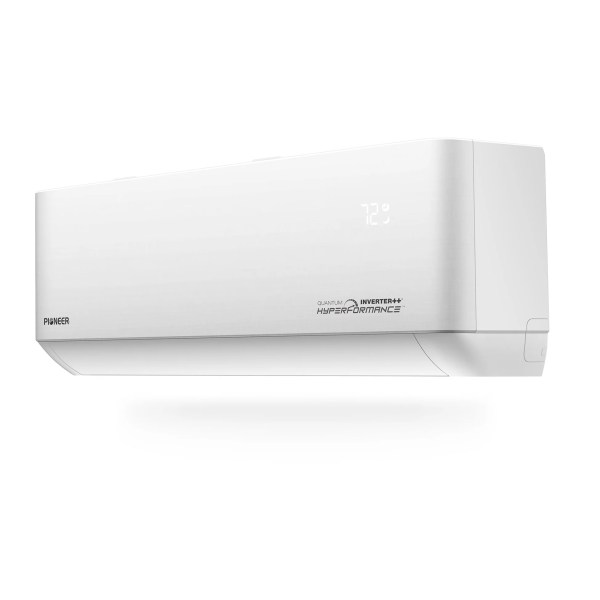

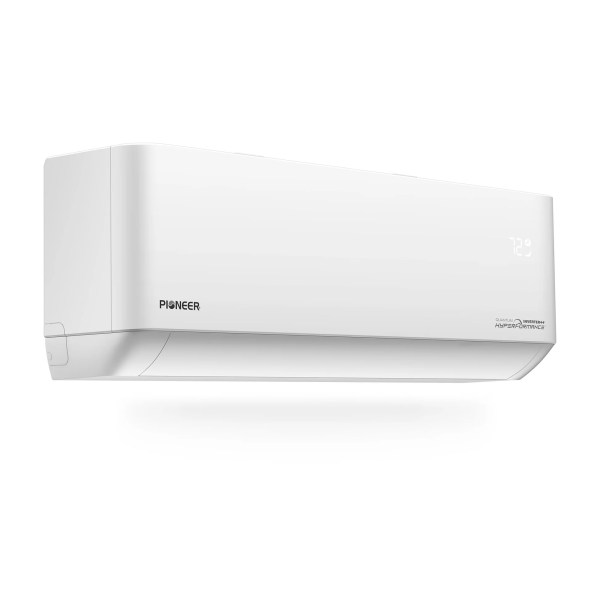

Indoor Unit
- Part Number: WT018GLSI25HLH
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 48 / 45 / 40 / 37 / 34 dB(A)

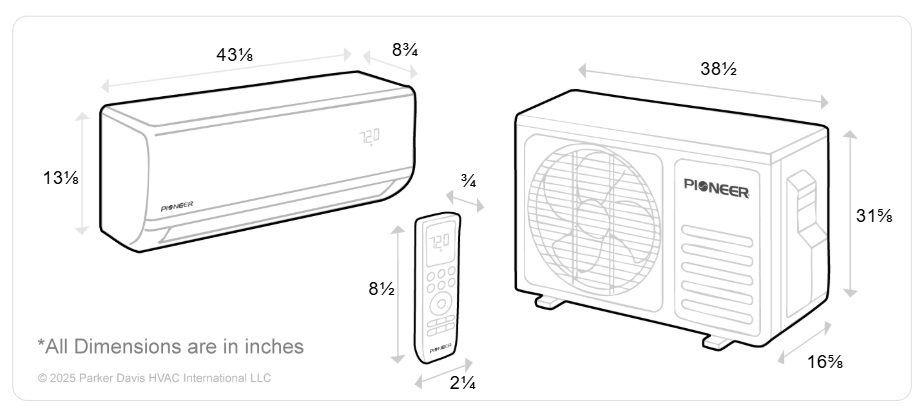

- Product Dimensions (WDH): 43″-1/8 x 8″-3/4 x 13″ Inches
- Carton Dimensions (WDH): 45″-7/8 x 11″-5/8 x 16″ Inches
- Net / Gross Weight: 30.9 / 35.3 lbs

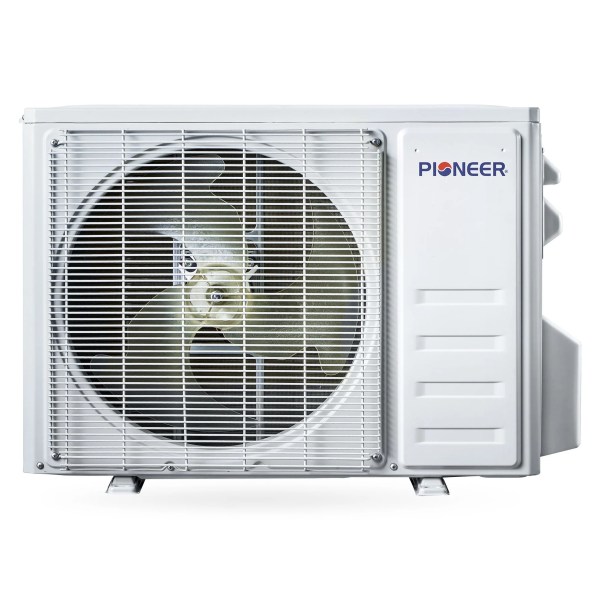

Outdoor Unit
- Part Number: YN018GLSI25RPH
- Breaker Needed: 20A (double-pole)
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 36″-1/2 x 15″ x 27″-1/2 Inches
- Carton Dimensions (WDH): 37″-3/8 x 16″-1/2 x 28″-7/8 Inches
- Net / Gross Weight: 93.7 / 102.5 lbs
Additional information
| Brand | Pioneer |
|---|---|
| Suitable Area | 750~1,000 sq ft |
| Refrigerant Type | R454b Refrigerant |
