Pioneer® Quantum Ultra™ 18,000 BTU 20.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Original price was: $2,629.00.$1,765.00Current price is: $1,765.00.
Why buy from our store?
- Description
- Technical Information & Performance
- Additional information
- Dimension Chart
- Manuals & Documents
- Reviews (0)
Description

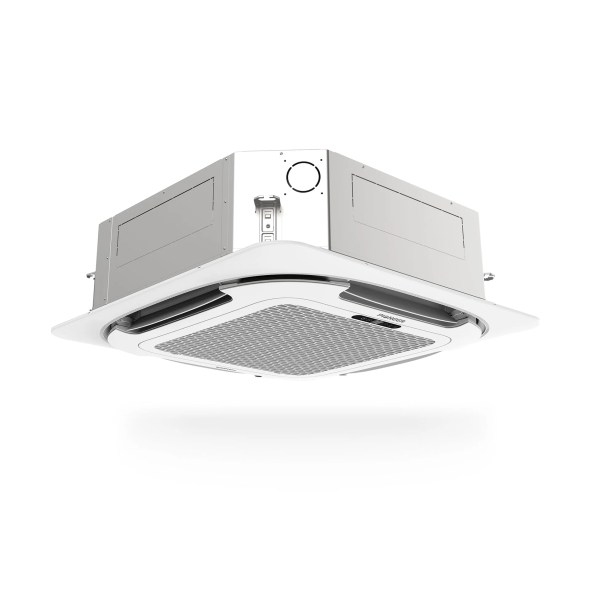

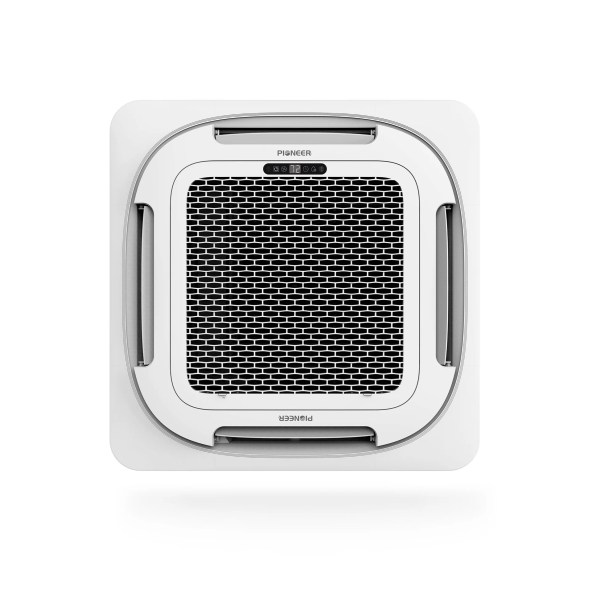

Quantum Ultra™ Ceiling Cassette
Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.
IMPORTANT
The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

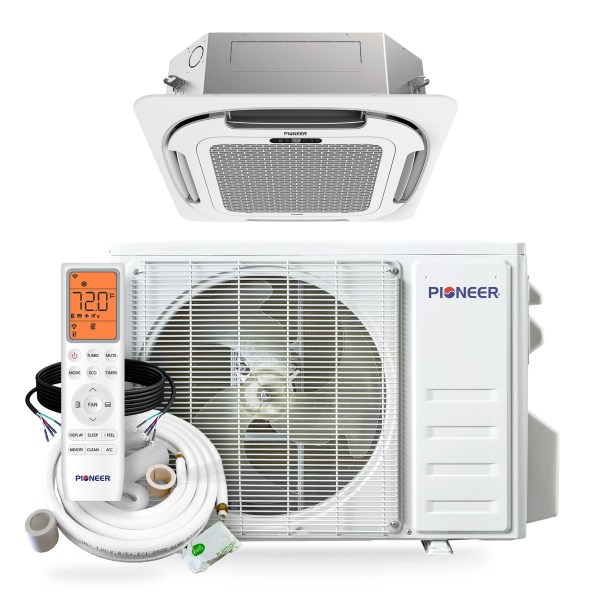

What’s Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Indoor Panel

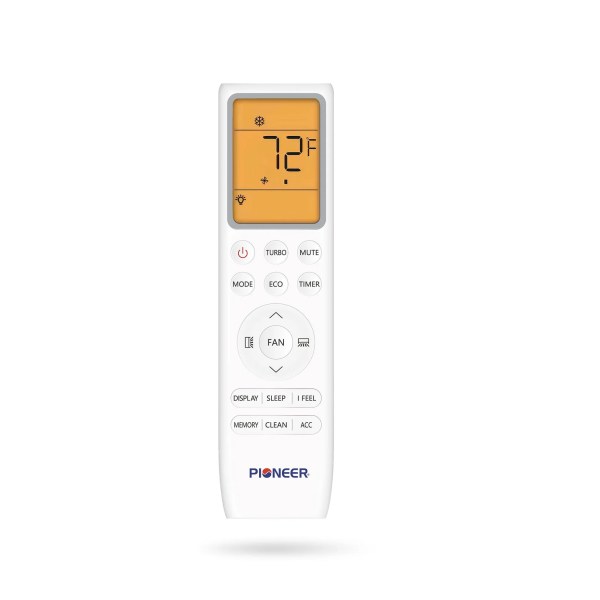

- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries

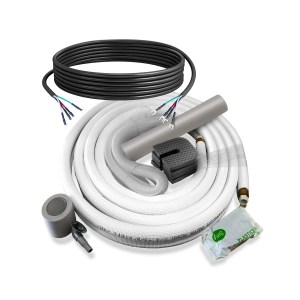

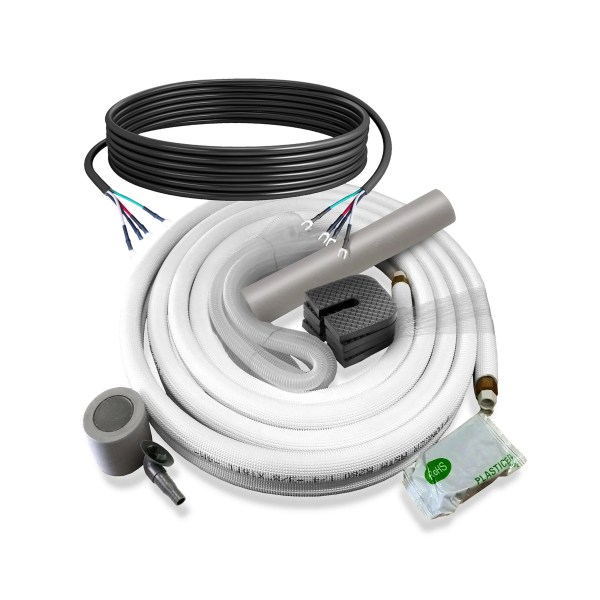

- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check the Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 16,000 BTU/H with 20.5 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 8.5 HSPF2 / 3.0 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)
Standard Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
_________________________________________________________________________________________________________
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 16,000 BTU/h
- Cooling Capacity Range: 6,000~19,400 BTU/h
- Cooling SEER2: 20.5 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 4,000~21,400 BTU/h
- Heating HSPF2 (Region IV): 8.5 / 7.4 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.0 / 1.8 W/W
- Refrigerant Type: R454b
- Suitable Area: 500~750 Sq.F
- AHRI Reference: 217048760
Indoor Unit
- Part Number: CT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)

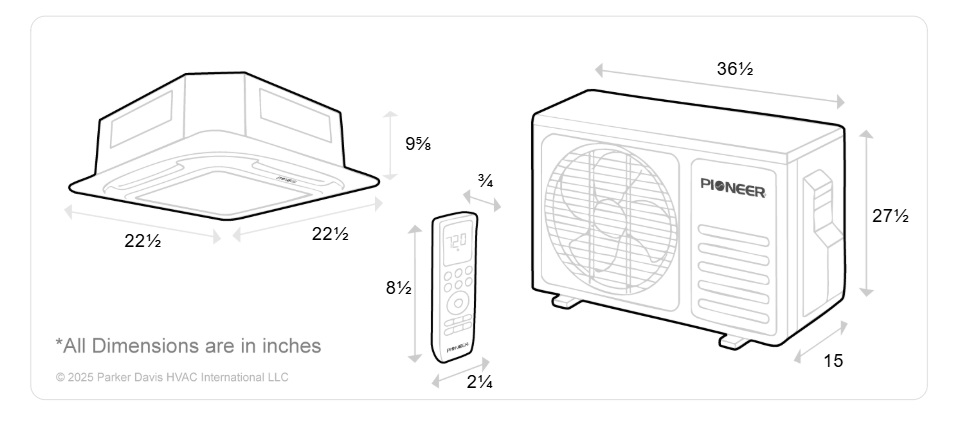

- Product Dimensions (WDH): 22″-1/2 x 22″-1/2 x 9″-5/8 Inches
- Carton Dimensions (WDH): 28″-1/4 x 25″-7/8 x 11″-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs.

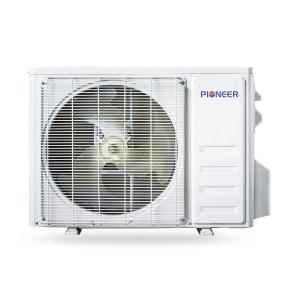

Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36″-1/2 x 15″ x 27″-1/2 Inches
- Carton Dimensions (WDH): 37″-3/8 x 16″-1/2 x 28″-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs.
Additional information
| Brand | Pioneer |
|---|---|
| Suitable Area | 500~750 Sq.F |
| Refrigerant Type | R-32 Refrigerant |
Technical Brochure
User & Installation Manual
Service Manual
Disassembly Manual
