Pioneer® Vertex™ 36,000 BTU 18.6 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
Original price was: $4,959.00.$3,340.00Current price is: $3,340.00.
Why buy from our store?
- Description
- Technical Information & Performance
- Additional information
- Dimension Chart
- Manuals & Documents
- Reviews (0)
Description
Vertex™ Ducted Central Split
Ducted air conditioning units provide climate control for multiple rooms using a single system and a network of air ducts. Pioneer’s ducted split systems offer whole-house heating and cooling with consistent comfort. Available in various configurations, our units range from 24,000–60,000 BTU with a SEER of 18. Built from quality materials with smart design, they deliver lasting performance.
IMPORTANT
The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit.

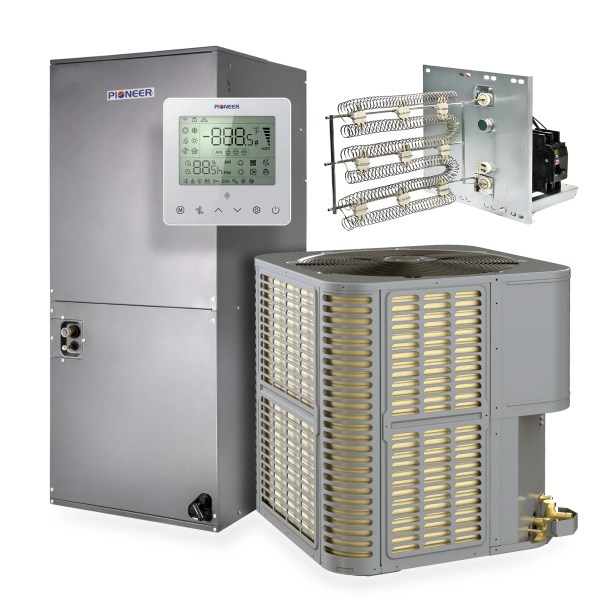

What’s Included in Your Purchase

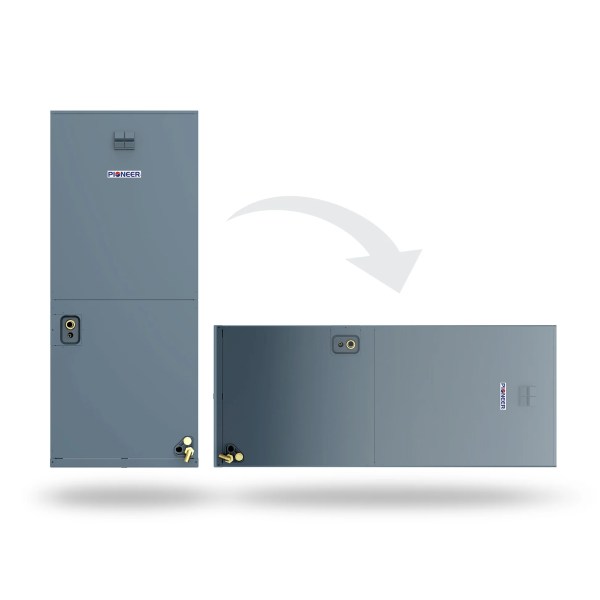

- Indoor Unit (Downflow-capable, with TXV)
- Outdoor Unit (Side-Discharge, with filter drier)

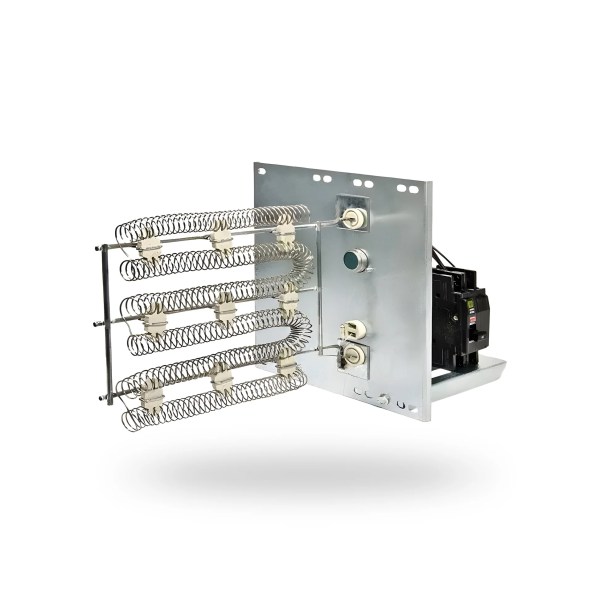

- Electric Strip Heater (5 kW w/ breaker)
- Wired Programmable Thermostat
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check the Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- Standard Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 34,000 BTU/H with 18.6 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 34,200 BTU/H with 9.0 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Standard Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
_________________________________________________________________________________________________________
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 34,000 BTU/h
- Cooling Capacity Range: 22,300~41,900 BTU/h
- Cooling SEER2: 18.6 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 34,200 BTU/h
- Heating Capacity Range: 12,600~48,900 BTU/h
- Heating HSPF2 (Region IV): 9.0 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048498

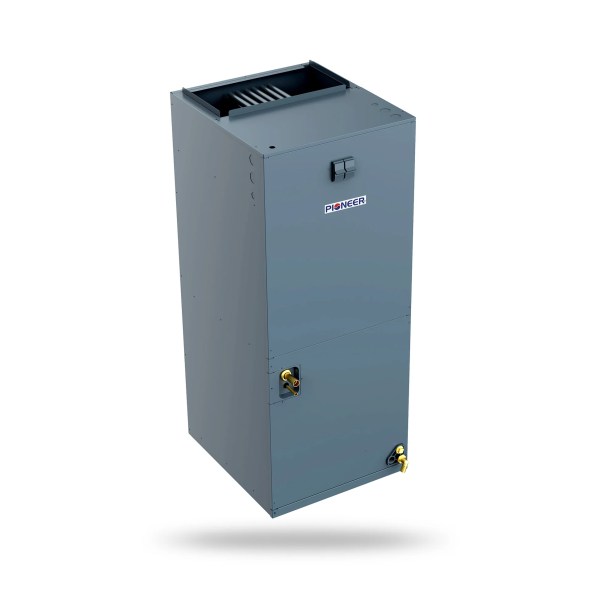

Air Handler
- Part Number: DC036GCSICDHRT
- Air Flow (Hi/Lo): 920 / 730 CFM
- Sound Level (Hi/Lo): 52 / 49 dB(A)

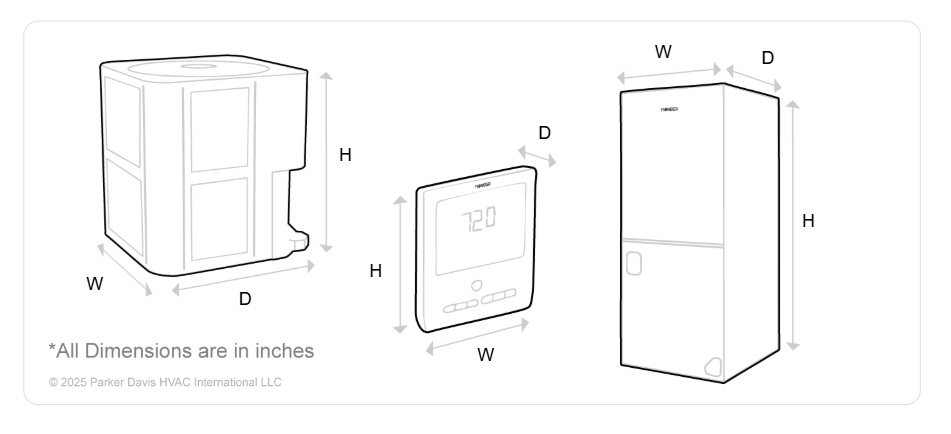

- Product Dimensions (WDH): 19″-5/8 x 22″ x 45″-3/4 Inches
- Carton Dimensions (WDH): 22″-7/8 x 25″-5/8 x 47″-5/8 Inches
- Net / Gross Weight: 130 / 143 lbs

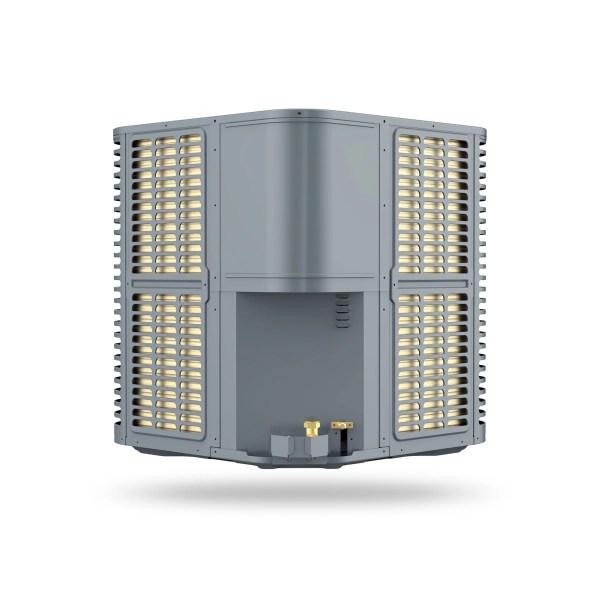

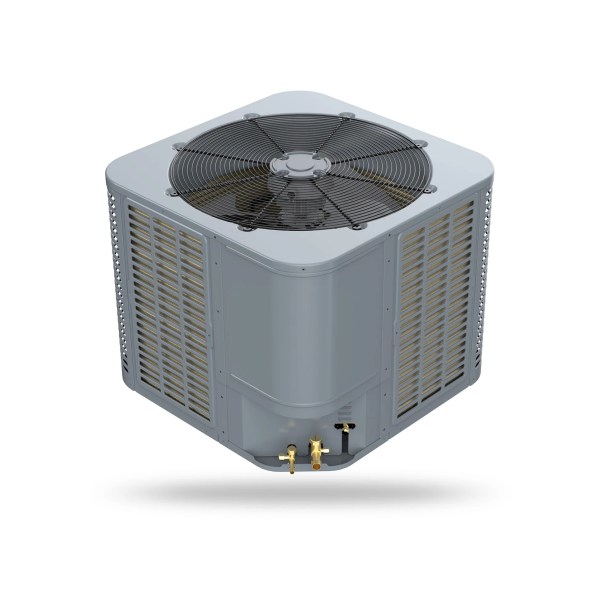

Outdoor Unit
- Part Number: YD2436GCSI18RD
- Breaker Needed: 20A (double-pole)
- Sound Level: 79 dB(A)
- Net Dimensions (WDH): 29″-1/8 x 25″ x 29″-1/8 Inches
- Carton Dimensions (WDH): 30″ x 26″ x 30″ Inches
- Net / Gross Weight: 137 / 146 lbs
Additional information
| Brand | Pioneer |
|---|---|
| Refrigerant Type | R-32 Refrigerant |
Technical Brochure
User & Installation Manual
Service Manual
Disassembly Manual
