Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Original price was: $2,049.00.$1,428.00Current price is: $1,428.00.
Why buy from our store?
- Description
- Technical Information & Performance
- Additional information
- Dimension Chart
- Manuals & Documents
- Reviews (0)
Description
Diamante Pro™ High-Wall Series
Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.
IMPORTANT
The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.
What’s Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check the Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
- Heating capacity: 24,600 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Standard Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
_________________________________________________________________________________________________________
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 5,100 ~ 25,200 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 24,600 BTU/h
- Heating Capacity Range: 5,100 ~ 25,900 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 2.1 W/W
- Refrigerant Type: R454b
- Suitable Area: 750~1000 Sq.F
- Piping Diameter:1/4 x 1/2″
- AHRI Reference: 217048745
Indoor Unit
- Part Number: WT024GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)

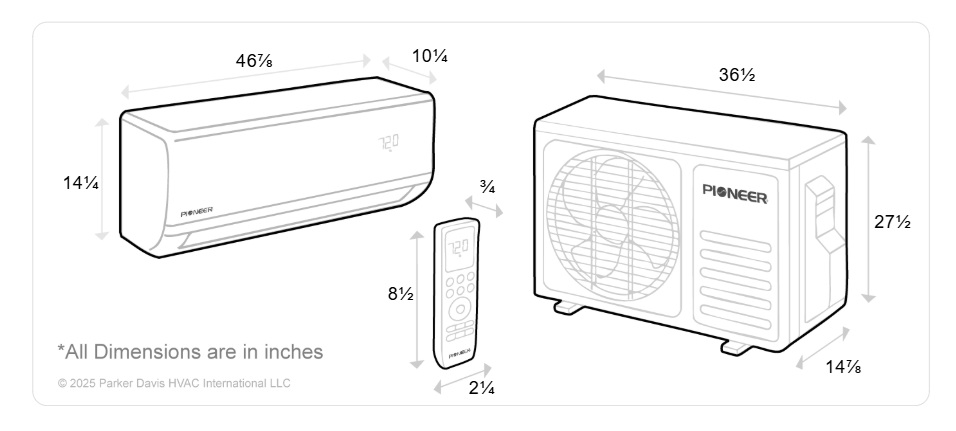

- Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 49-5/8 x 13 x 17 Inches
- Net / Gross Weight: 36.4 / 43 lbs.
Outdoor Unit
- Part Number: YN024GLSI20RPF
- Breaker Needed: 20A (double-pole)
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 36-1/2 x 14-7/8 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17-1/8 x 30-1/2 Inches
- Net / Gross Weight: 88.2 / 103.6 lbs.
Additional information
| Brand | Pioneer |
|---|---|
| Suitable Area | 750~1000 Sq.F |
| Refrigerant Type | R-32 Refrigerant |
