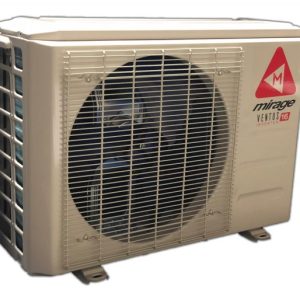

12,000 BTU Mirage Ventus X 19 SEER 220V Mini Split Heat Pump
Original price was: $1,029.00.$965.00Current price is: $965.00.
VENTUS X INVERTER
- Description
- Specifications
- Additional information
- Resources
- Reviews (1)
Description
Product Details
- BTU Cooling: 12000 BTU
- Voltage: 220 Volt
- 19 SEER DC Inverter Compressor
- Heat Pump
What’s Included:
- Inside unit
- Outside Unit
- Line set: 16 ft., 100% Cooper
- LCD Remote for each indoor unit
- Heat Pump
Factory Warranty:
- 6 years compressor
- 2 year parts
More About This Product
When the room reaches a set number, the unit starts to work in a low frequency. The compressor does not need to stop and re-start and it saves more energy and less damage to the compressor.
Energy-saving Operation
10-20 %
Energy-saving efficiency improvement
Safety Design
– No connection between condensate water & electricity.
– Fireproof electric control box.
– Erosion resistance materials.
Characteristics
– Gentle cool wind –
– TiTan gold fin –
– Self cleanliness –
– Filter cleaning reminder –
– Smart air flow –
W-Width H-High D-Deep
| IVKH090A OVKH090A |
IVKH120A OVKH120A |
IVKH121A OVKH121A |
IVKH181A OVKH181A |
IVKH241A OVKH241A |
IVKH361A OVKH361A |
|||
|---|---|---|---|---|---|---|---|---|
| Type | cooling&heating | cooling&heating | cooling&heating | cooling&heating | cooling&heating | cooling&heating | ||
| Control type | remote | remote | remote | remote | remote | remote | ||
| Power supply | 115V~/60Hz/1P | 115V~/60Hz/1P | 208-230V~/60Hz/1P | 230V~/60Hz/1P | 230V~/60Hz/1P | 230V~/60Hz/1P | ||
| Rated cooling capacity | Btu/h | 9000 | 12000 | 12000 | 18000 | 24000 | 36000 | |
| Rated Heating capacity | Btu/h | 9500 | 12000 | 12500 | 19000 | 24400 | 36000 | |
| SEER | Btu/W.h | 20.0 | 20.0 | 19.0 | 19.0 | 18.0 | 17.0 | |
| HSPF Rating (Region IV) | Btu/W.h | 10.5 | 10.0 | 9.5 | 10.0 | 10.0 | 8.5 | |
| EER | Btu/W.h | 12.0 | 10.5 | 10.5 | 10.0 | 9.5 | 9.0 | |
| COP | W/W | 3.4 | 3.0 | 3.2 | 3.0 | 3.0 | 2.8 | |
| Input Consumption | Cooling | W | 750.0 | 1140.0 | 1140.0 | 1800.0 | 2520.0 | 4000.0 |
| Heating | W | 810.0 | 1170.0 | 1140.0 | 1850.0 | 2390.0 | 3760.0 | |
| Rated Current | Cooling | A | 6.7 | 10.0 | 5.1 | 8.0 | 11.2 | 17.7 |
| Heating | A | 7.3 | 10.4 | 5.1 | 8.3 | 10.6 | 16.7 | |
| Maximum Operation Pressure | PSIG | 550 | 550 | 550 | 550 | 550 | 550 | |
| Maximum Fuse Size | A | 7.3 | 10.4 | 5.1 | 8.3 | 10.6 | 16.7 | |
| Indoor noise level at cooling | High/Med/Low | 38/35/32 | 40/37/34 | 40/37/34 | 44/39/34 | 50/46/42 | 50/46/42 | |
| Outdoor noise level | dB(A) | 50 | 52 | 52 | 55 | 58 | 58 | |
| Connecting Pipe | Gas | inches | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 1/2″ | 5/8″ |
| Liquid | inches | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | |
| Net dimensions (W x D x H) | Indoor | inch | 31.92×11.49×8.07 | 31.92×11.49×8.07 | 31.92×11.49×8.07 | 39.76×12.40×8.66 | 46.69×13.38×10.23 | 46.69×13.38×10.23 |
| Outdoor | inch | 28.66×12.01×21.65 | 28.66×12.01×21.65 | 28.14×11.42×19.61 | 30.70×13.74×23.81 | 33.26×14.96×27.51 | 35.43×14.17×31.69 | |
| Net weight | Indoor | lbs | 19.8 | 19.8 | 19.8 | 28.7 | 37.5 | 38.6 |
| Outdoor | lbs | 61.3 | 63.9 | 59.5 | 73.8 | 99.2 | 136.7 | |
| Indoor Unit | ||||||||
| Indoor Motor | Motor Model | AC | AC | AC | DC | DC | DC | |
| Indoor air circulation / Hi | CFM | 350 | 380 | 380 | 600 | 850 | 850 | |
| Outdoor Unit | ||||||||
| Compressor Brand | GMCC | GMCC | GMCC | SANYO | SANYO | GMCC | ||
| Compressor Model | Operation tempetature | DC | DC | DC | DC | DC | DC | |
| Outdoor Motor | Motor Brand | Weilling/Broad-Ocean/SHIBURA | Weilling/Broad-Ocean/SHIBURA | Weilling/Broad-Ocean/SHIBURA | Weilling/Broad-Ocean | Weilling/Broad-Ocean | Weilling/Broad-Ocean | |
| Outdoor Motor | Motor Model | DC | DC | DC | DC | DC | DC | |
| Outdoor air circulation/Hi | CFM | 1350 | 1350 | 1110 | 1520 | 1760 | 2110 | |
| Factory Refrigerant R410a charge | oz | 28.57 | 35.34 | 34.22 | 37.74 | 50.09 | 86.42 | |
| Line Set Size | ft | 16 | 16 | 16 | 16 | 16 | 16 | |
| Maximum Allowed Length | ft | 50 | 50 | 50 | 65 | 65 | 98 | |
| Maximum Allowed Height | ft | 33 | 33 | 33 | 49 | 49 | 65 | |
| Operation Temperature | °F | 61 ~ 88 | 61 ~ 88 | 61 ~ 88 | 61 ~ 88 | 61 ~ 88 | 61 ~ 88 | |
| Additional regrigerant Charge | Oz/Ft | 0.216 | 0.216 | 0.312 | 0.312 | 0.312 | 0.312 | |
Additional information
| Weight | 79.30 lbs |
|---|---|
| Color | White |
| Freon: | 34.22oz |
| Brand | Mirage |
Brochure
Anderson Y. Murphey –
When it has run, it is much quieter than my other unit that I have.
