Pioneer® Diamante Essenza™ 24,000 BTU 20 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Original price was: $2,029.00.$1,413.00Current price is: $1,413.00.
Why buy from our store?
- Description
- Technical Information & Performance
- Additional information
- Dimension Chart
- Manuals & Documents
- Reviews (0)
Description
Pioneer® Product Series
Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.
IMPORTANT
The outdoor unit is factory-precharged with R32 refrigerant and accommodates refrigerant line lengths of up to 25 ft per circuit. If using a lineset that exceeds this length, additional refrigerant will need to be charged into the system during installation. This model can only be purchased with the 16′ lineset option. If needing a different length, please shop the Quantum Ultra or Hyperformance series, or purchase additional linesets here: Standard /
What’s Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check the Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- High Efficiency Diamante Essenza™ Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 20.0 SEER2 / 10.5 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 9.5 HSPF2 / 2.8 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as -4°F in Heating / As high as 127°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
_________________________________________________________________________________________________________
System Kit
- Power Supply:208/230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 5,100~26,000 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 10.5 BTU/W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 5,100~26,000 BTU/h
- Heating HSPF2 (Region IV/V): 9.5 / 8.1 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.8 / 1.8 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 750~1,000 sq ft
- Minimum Room Size: 48 sq ft
- Piping Diameter: 1/2″ (Gas) / 1/4″ (Liquid)
- AHRI Reference: 218451045
Indoor Unit
- Part Number: WT024GLUI20HLE
- Air Flow (Turbo/Hi/Med/Lo/Mute): 647 / 575 / 517 / 423 / 382 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 51 / 49 / 43 / 37 / 34 dB(A)

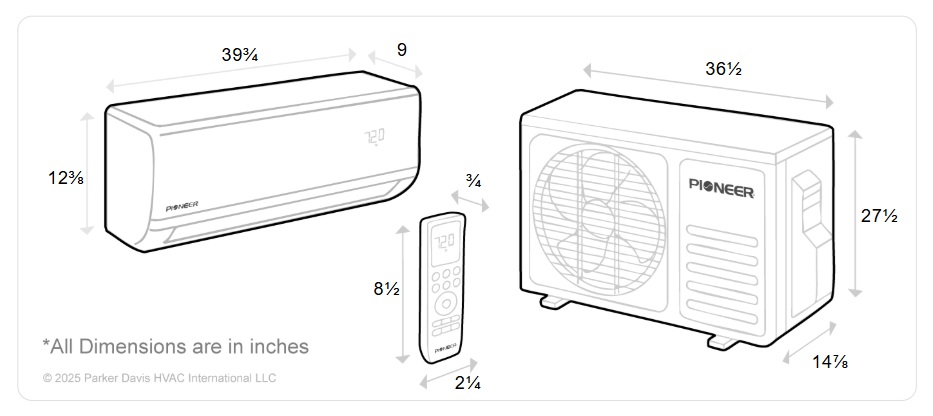

- Product Dimensions (WDH): 39″-3/4 x 9″ x 12″-3/8 Inches
- Carton Dimensions (WDH): 43″-1/8 x 11″-3/4 x 15″-3/8 Inches
- Net / Gross Weight: 26.5 / 33.7 lbs
Outdoor Unit
- Part Number: YN024GLUI20RPE
- Breaker Needed: 30A (double-pole)
- Sound Level: 60 dB(A)
- Net Dimensions (WDH): 36″-1/2 x 14″-7/8 x 27″-1/2 Inches
- Carton Dimensions (WDH): 37″-3/4 x 17″-1/8 x 30″-1/2 Inches
- Net / Gross Weight: 88.2 / 97.0 lbs
Additional information
| Brand | Pioneer |
|---|---|
| Suitable Area | 750~1,000 sq ft |
| Refrigerant Type | R-32 Refrigerant |
