Pioneer® Quantum Ultra™ 36,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump
Original price was: $5,109.00.$3,578.00Current price is: $3,578.00.
Why buy from our store?
- Description
- Technical Information & Performance
- Additional information
- Dimension Chart
- Manuals & Documents
- Reviews (0)
Description

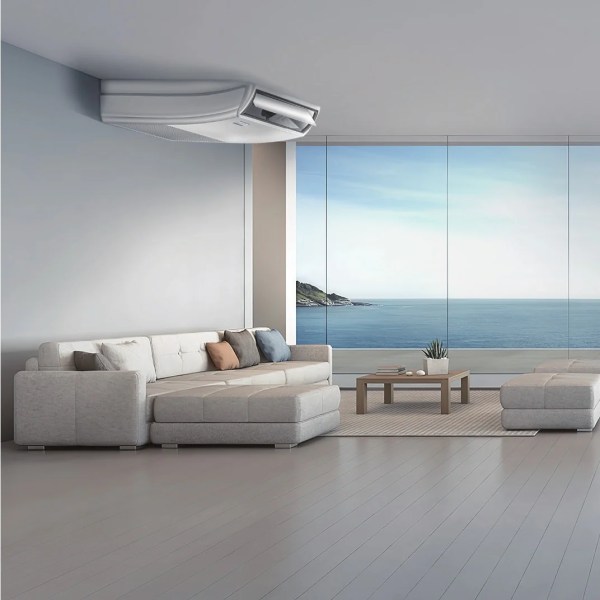

Quantum Ultra™ Floor/Ceiling/Low-Wall Ductless
IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the “Without Installation Kit” option unless you are providing one yourself.
What’s Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Indoor Panel
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check the Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 20.0 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 38,000 BTU/H with 10.0 HSPF2 / 3.34 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Standard Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 7,300~39,500 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Heating Rated Capacity: 38,000 BTU/h
- Heating Capacity Range: 14,100~40,400 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.34 / 2.17 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,000~1,400 sq ft
- Minimum Room Size (Ceiling Suspended): 104 sq ft
- Minimum Room Size (Floor/Low Wall):500 sq ft
- Piping Diameter: 3/4″ (Gas) / 3/8″ (Liquid)
- AHRI Reference: 218010995

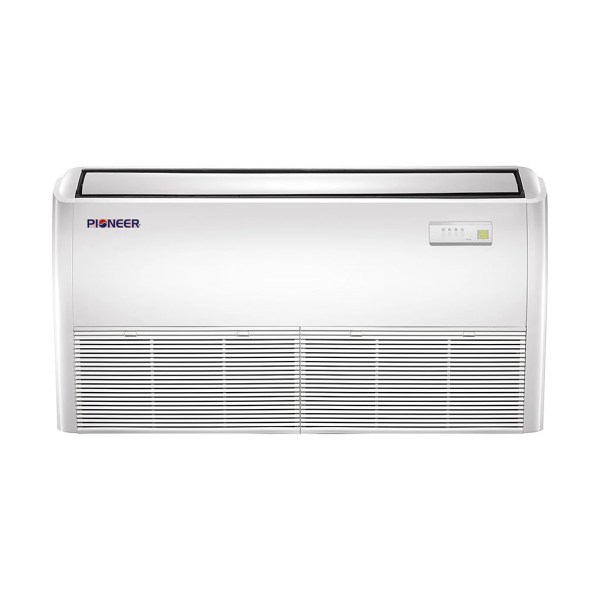

Indoor Unit
- Part Number: UB036GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,224 / 1,089 / 989 / 765 / 663 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 49 / 44 / 37 / 33 dB(A)
- Product Dimensions (WDH): 65″ x 26″-5/8 x 9″-1/4 Inches
- Carton Dimensions (WDH): 68″-3/8 x 30″ x 12″-1/4 Inches
- Net / Gross Weight: 89.0 / 105.0 lbs
Outdoor Unit
- Part Number: YN036GMSI20RUG
- Breaker Needed: 40A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 37″-1/4 x 16″-1/4 x 31″-7/8 Inches
- Carton Dimensions (WDH): 42″-7/8 x 19″-5/8 x 34″-7/8 Inches
- Net / Gross Weight: 152.4 / 162.5 lbs
Additional information
| Brand | Pioneer |
|---|---|
| Suitable Area | 1,000~1,400 sq ft |
| Refrigerant Type | R454b Refrigerant |
